Low Profile Scissor Dump

What you’ll get:

  • 24″ Sides
  • Ramps (Stored Underneath Bed)
  • HD Reinforced Combo Barn Door Spreader Gate with Cambar
  • Side Steps
  • All LED Lights
Request a Quote Locate a Dealer

Low Profile Scissor Dump 12K

DescriptionLow Profile Scissor Dump 12K
Main FrameTube
Sides24" Integrated Body Stiffening System
Coupler2 5/16" Adjustable
JackSetback 7K Drop Leg
Safety ChainsDOT
MOLDED PLUG7-Way RV Style
WIRING HARNESSEverlink™
BRAKE CONNECTIONSSealed
STAB JACKSIntegrated Receivers (Jacks Optional)
RampsChannel Slide-in
Rear DoorsReinforced Combo Barn Doors w/ Cam Bar
GateSpreader
FendersHD Double Brake Tread Plate
Axles6000#
BrakesHD Slipper Spring Brake
HubsEasy Lube
WheelsSteel 16"
TiresRadial 235/80R16 LRE
Floor10ga. Steel
Cargo Control(5) ea. 1/2" D-Rings, Stake Pockets
Spare MountFormed
Side StepsFormed
Tarp MountIntegrated
Tarp Kit18' Mesh
Control BoxTongue Mounted HD w/ Key Lock

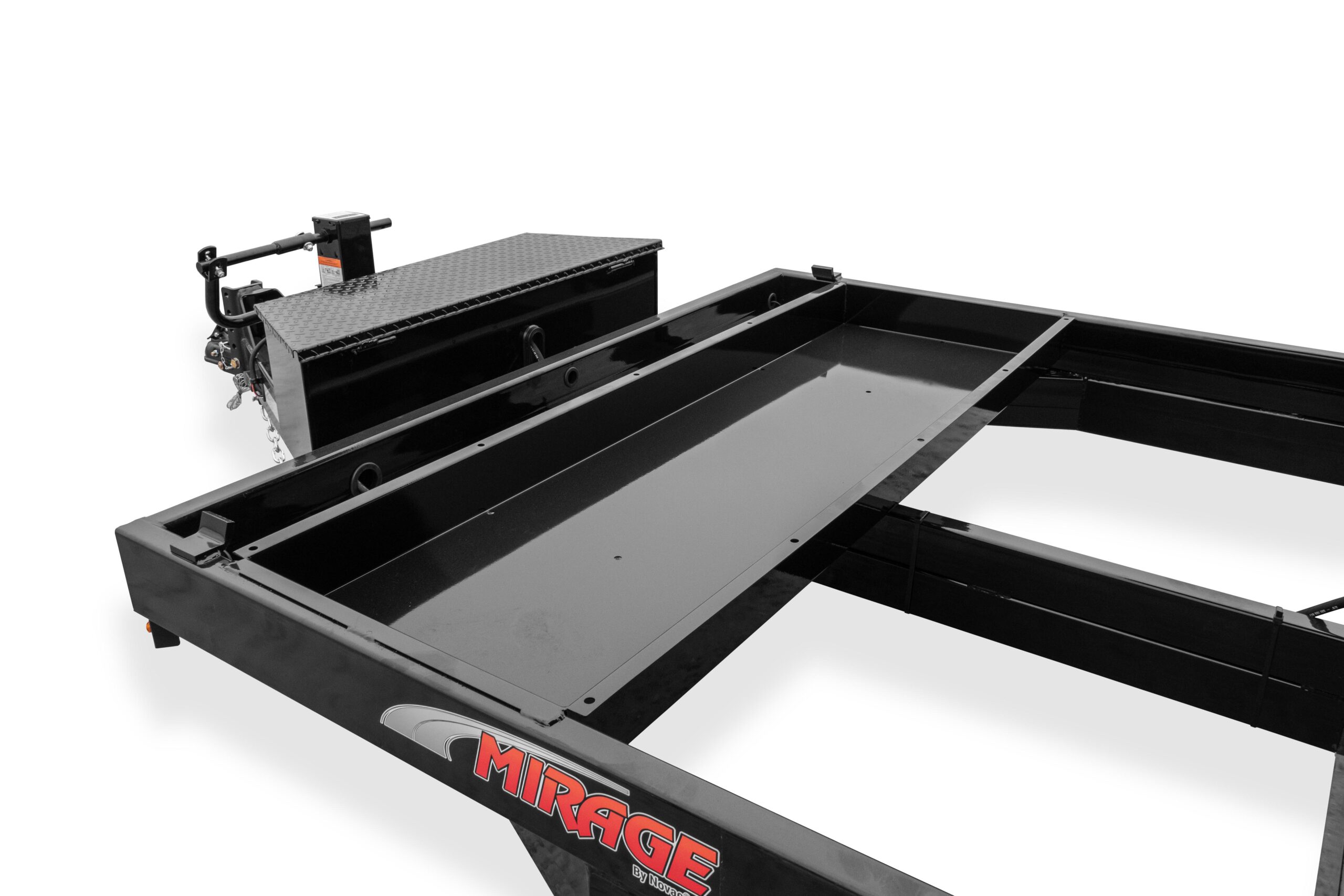

StorageSecure Underbody Tool Tray
LIghtsLED
BatteryGroup 24 Deep Cycle
Charger110v
HydraulicsScissor Hoist (Power Up/Gravity Down)
Paint PrepZirconium Wash, Epoxy Ester Primer
Paint2-Part Acrylic Urethane Topcoat
Warranty3-Year

Low Profile Scissor Dump 14K

DescriptionLow Profile Scissor Dump 14K
Main FrameTube
Sides24" Integrated Body Stiffening System
Coupler2 5/16" Adjustable
JackSetback HD 12K Drop Leg
Safety ChainsDOT
MOLDED PLUG7-Way RV Style
WIRING HARNESSEverlink™
BRAKE CONNECTIONSSealed
STAB JACKSIntegrated Receivers (Jacks Optional)
RampsChannel Slide-in
Rear DoorsReinforced Combo Barn Doors w/ Cam Bar
GateSpreader
FendersHD Double Brake Tread Plate
Axles7000#
BrakesHD Slipper Spring Brake
HubsEasy Lube
WheelsSteel 16"
TiresRadial 235/80R16 LRE
Floor10ga. Steel
Cargo Control(5) ea. 1/2" D-Rings, Stake Pockets
Spare MountFormed
Side StepsFormed
Tarp MountIntegrated
Tarp Kit18' (12 and 14'), 20' (16')
Control BoxTongue Mounted HD w/ Key Lock
StorageSecure Underbody Tool Tray
LIghtsLED
BatteryDP24 (12 and 14'), DP31 (16') Deep Cycle
Charger110v
HydraulicsScissor Hoist (Power Up/Gravity Down)
Paint PrepZirconium Wash, Epoxy Ester Primer
Paint2-Part Acrylic Urethane Topcoat
Warranty3-Year

7 x 16 Tandem Axle 14K

DESCRIPTION7 x 16 Tandem Axle 14K
GVWR14000
GAWR7000
CURB WEIGHT4420
PAYLOAD9580
FRAME6 x 2" Tube (1/4" Wall)
CROSS MEMBERS4" C-Channel
TONGUE6 x 2" Tube
Sides24" Integrated Side Body Stiffening System
COUPLER2 5/16" Adjustable
Safety ChainsDOT
JACKSetback HD 12K Drop Leg
FendersHD Double Brake Tread Plate
AxlesEasy Lube Cambered Brake
SUSPENSIONSlipper Spring
TIRESRadial 235/80R16 LRE
WHEELS16", 8 Lug on 6.5"
DECKING10ga. Steel
LIGHTSLED
ELECTRIC PLUG7-Way RV Style Molded
Paint PrepZirconium Wash, Epoxy Ester Primer
FINISH2-Part Acrylic Urethane Topcoat
Overall Length246"
BED LENGTH INSIDE192"
BED WIDTH INSIDE82"
BED HEIGHT INSIDE24"
DECK HEIGHT29"
COUPLER HEIGHTAdj. 19-27"
GateCombination Spreader/Barn Door w/ Cam Bar
RampsHD Channel Slide-in
HYDRAULIC HOISTScissor (Power Up, Gravity Down)
PUMP2500 PSI
BATTERYGroup 31 Deep Cycle
Cargo Control1/2" D-Rings, Stake Pockets, Tarp Mount and Kit
WarrantyLimited 3-Year

7 x 12 Tandem Axle 12K

DESCRIPTION7 x 12 Tandem Axle 12K
GVWR12000
GAWR6000
CURB WEIGHT3660
PAYLOAD8340
FRAME5 x 2" Tube
CROSS MEMBERS4" C-Channel
TONGUE5 x 2" Tube
Sides24" Integrated Side Body Stiffening System
COUPLER2 5/16" Adjustable
Safety ChainsDOT
JACKSetback 7K Drop Leg
FendersHD Double Brake Tread Plate
AxlesEasy Lube Cambered Brake
SUSPENSIONSlipper Spring
TIRESRadial 235/80R16 LRE
WHEELS16", 8 Lug on 6.5"
DECKING10ga. Steel
LIGHTSLED
ELECTRIC PLUG7-Way RV Style Molded
Paint PrepZirconium Wash, Epoxy Ester Primer
FINISH2-Part Acrylic Urethane Topcoat
Overall Length198"
BED LENGTH INSIDE144"
BED WIDTH INSIDE82"
BED HEIGHT INSIDE24"
DECK HEIGHT29"
COUPLER HEIGHTAdj. 19-27"
GateCombination Spreader/Barn Door w/ Cam Bar
RampsHD Channel Slide-in
HYDRAULIC HOISTScissor (Power Up, Gravity Down)
PUMP2500 PSI
BATTERYGroup 24 Deep Cycle
Cargo Control1/2" D-Rings, Stake Pockets, Tarp Mount and Kit
WarrantyLimited 3-Year

7 x 12 Tandem Axle 14K

DESCRIPTION7 x 12 Tandem Axle 14K
GVWR14000
GAWR7000
CURB WEIGHT3880
PAYLOAD10120
FRAME6 x 2" Tube (3/16" Wall)
CROSS MEMBERS4" C-Channel
TONGUE6 x 2" Tube
Sides24" Integrated Side Body Stiffening System
COUPLER2 5/16" Adjustable
Safety ChainsDOT
JACKSetback HD 12K Drop Leg
FendersHD Double Brake Tread Plate
AxlesEasy Lube Cambered Brake
SUSPENSIONSlipper Spring
TIRESRadial 235/80R16 LRE
WHEELS16", 8 Lug on 6.5"
DECKING10ga. Steel
LIGHTSLED
ELECTRIC PLUG7-Way RV Style Molded
Paint PrepZirconium Wash, Epoxy Ester Primer
FINISH2-Part Acrylic Urethane Topcoat
Overall Length198"
BED LENGTH INSIDE144"
BED WIDTH INSIDE82"
BED HEIGHT INSIDE24"
DECK HEIGHT29"
COUPLER HEIGHTAdj. 19-27"
GateCombination Spreader/Barn Door w/ Cam Bar
RampsHD Channel Slide-in
HYDRAULIC HOISTScissor (Power Up, Gravity Down)
PUMP2800 PSI
BATTERYGroup 24 Deep Cycle
Cargo Control1/2" D-Rings, Stake Pockets, Tarp Mount and Kit
WarrantyLimited 3-Year

7 x 14 Tandem Axle 14K

DESCRIPTION7 x 14 Tandem Axle 14K
GVWR14000
GAWR7000
CURB WEIGHT4080
PAYLOAD9920
FRAME6 x 2" Tube (3/16" Wall)
CROSS MEMBERS4" C-Channel
TONGUE6 x 2" Tube
Sides24" Integrated Side Body Stiffening System
COUPLER2 5/16" Adjustable
Safety ChainsDOT
JACKSetback HD 12K Drop Leg
FendersHD Double Brake Tread Plate
AxlesEasy Lube Cambered Brake
SUSPENSIONSlipper Spring
TIRESRadial 235/80R16 LRE
WHEELS16", 8 Lug on 6.5"
DECKING10ga. Steel
LIGHTSLED
ELECTRIC PLUG7-Way RV Style Molded
Paint PrepZirconium Wash, Epoxy Ester Primer
FINISH2-Part Acrylic Urethane Topcoat
Overall Length222"
BED LENGTH INSIDE168"
BED WIDTH INSIDE82"
BED HEIGHT INSIDE24"
DECK HEIGHT29"
COUPLER HEIGHTAdj. 19-27"
GateCombination Spreader/Barn Door w/ Cam Bar
RampsHD Channel Slide-in
HYDRAULIC HOISTScissor (Power Up, Gravity Down)
PUMP2800 PSI
BATTERYGroup 24 Deep Cycle
Cargo Control1/2" D-Rings, Stake Pockets, Tarp Mount and Kit
WarrantyLimited 3-Year
Penske Yellow
Victory Red
Champagne Beige
Forest Green
Schneider Orange
Charcoal Metallic
Silver
Indigo Blue
Dove Grey
Brandy Wine
White
Black

*Disclaimer: Colors shown are approximate. Actual colors will vary slightly from what is shown.

Warranty View, Download, Claim, or Register

Gallery

* Trailer may be shown with optional features and/or customizations. Standard features are subject to change without notice.
